Luxury KNX Keypads/Room Controller

EPHESUS

KNX ROOM CONTROLLER

“Create your own design with Ephesus”

Inspired by Ephesus, we offer you special luxury and aesthetic designs. Integrated with KNX technology, this product perfectly matches your smart home systems. This design, where elegance and functionality reach the top in air conditioning solutions, is made of fine material and offers standard and pastel color options. With its high-quality touch screen and push buttons, you can easily perform switching, dimming, blind and shutter controls, HVAC controls, scene settings and value control functions. In addition, you can choose between comfort, standby and economy modes, see the fan levels of HVAC products on the screen and follow the window status with the external magnetic sensor. It offers functionality and aesthetics together with two or four button options according to your needs.

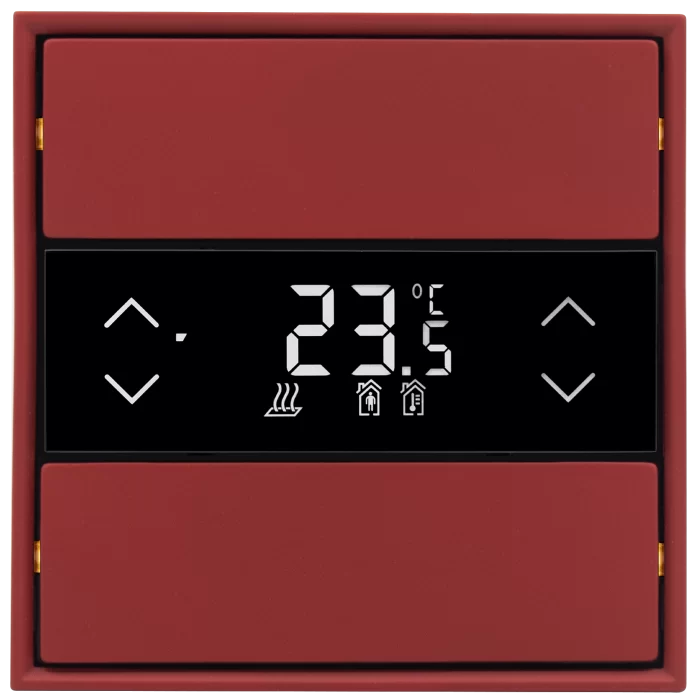

EPHESUS KNX Room Controller & HVAC

EPHESUS KNX Room control devices have a stylish and simple design; It is produced from quality materials with unique painting and hand craftsmanship. Our devices, produced with 2/4 and 4/8 buttons, can be easily mounted on universally used round or square flush-mounted cases.

EPHESUS is not only a thermostat but also a KNX-based room controller. EPHESUS KNX Room Control Device has a simple and plain interface design and sensors that detect temperature, humidity and ambient light level. In this way, it provides a high level of comfort and energy efficiency in your environment. Comfortable air conditioning, lighting and curtain/blind control can be done with a single touch. You can also activate/deactivate sound systems or scenario management. It allows you to control all defined functions needed in the room from a single platform. Additionally, all controls can be managed remotely via the EOZ touch panel, smartphone or tablet (IOS and Android).

EPHESUS 7 main functions are performed via integrated buttons.

Switching (On-Off)
Curtains / Blinds
Air conditioning
Fan Control
Dimming
Scenario
Setting the Operating Mode

EPHESUS KNX Room Controller Has 2 Integrated Sensors

Temperature and humidity sensor
Ambient light sensor

EPHESUS KNX Room Controller Used For HVAC Operation

Heating
Cooling
Heating and Cooling

EPHESUS KNX Room Controller can perform many functions as follows.

Displaying ambient humidity and temperature on the screen
4 built-in buttons
4 status LEDs on buttons for feedback of processes
Switch, dimmer, shutter and shutter controls, HVAC controls, scenarios and value control functions are available via push buttons
Temperature measurement with the possibility of sending bus values
2-point (on/off) or proportional (PWM or continuous) room temperature control

Adjust fan speed with up and down buttons
Seasonal operating modes: heating and cooling with local switching or bus
Adjust setpoint with up and down buttons
Operating modes: comfort, standby, night and freeze/heat protection with setpoint
Manual or automatic control of a fan coil unit with 2-pipe or 4-pipe connection
Automatic switching of operating mode when window is detected

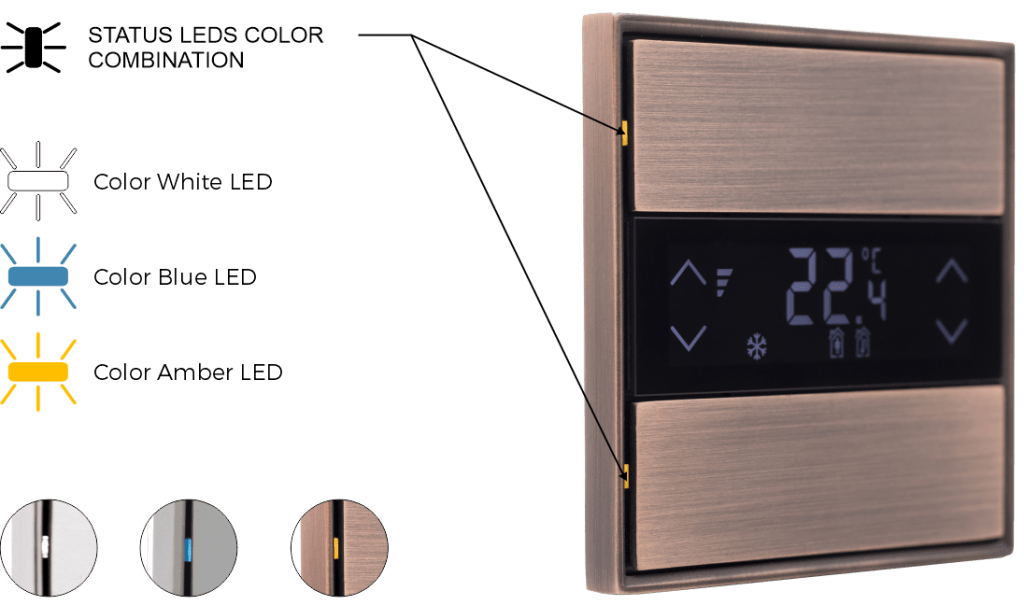

EPHESUS KNX Room Controller Feedback LED Color Selection

With 3 different color options switchable feedback LED combinations

On our Ephesus room controller; Considering the color harmony of your living spaces, we offer Status LED color alternatives in 3 different colors (white, blue, amber)…
